Find Your Golf Cart Battery
Choose your cart to find a recommended battery.
Typical factory setup
— lead-acid
24V system
Based on the original configuration. Modified carts need a fit check.
Recommended battery
24V 100Ah
Model ZP-24100
- 3,500+ cycles
- IP65-sealed, maintenance-free
- Flat power to nearly empty
Full specs — 24V 100AhZP-24100
LiFePO4 · IP65 · UN38.3 · FCC · IC
L × W × H (ref.)20.55 × 9.45 × 8.62 in (522 × 240 × 219 mm)
Nominal voltage25.6V
Capacity100Ah
Energy2560Wh (2.6kWh)
Max discharge200A
ChemistryLiFePO4
Cycle life3,500+ cycles
Ingress ratingIP65
Warranty3 years
Weight~53 lbs (24 kg)
Typical factory setup
— lead-acid
36V system
Based on the original configuration. Modified carts need a fit check.
Recommended battery
36V 105Ah
Model ZP-36105
- 3,500+ cycles
- 210A continuous — climbs hills
- IP65-sealed, maintenance-free
Full specs — 36V 105AhZP-36105
LiFePO4 · IP65 · UN38.3 · FCC · IC
L × W × H (ref.)16.14 × 10.83 × 10.63 in (410 × 275.1 × 270 mm)
Nominal voltage38.4V
Capacity105Ah
Energy4032Wh (4.0kWh)
Max discharge210A
ChemistryLiFePO4
Cycle life3,500+ cycles
Ingress ratingIP65
Warranty3 years
Weight~80 lbs (36 kg)
Typical factory setup
— lead-acid
48V system
Based on the original configuration. Modified carts need a fit check.
Recommended battery

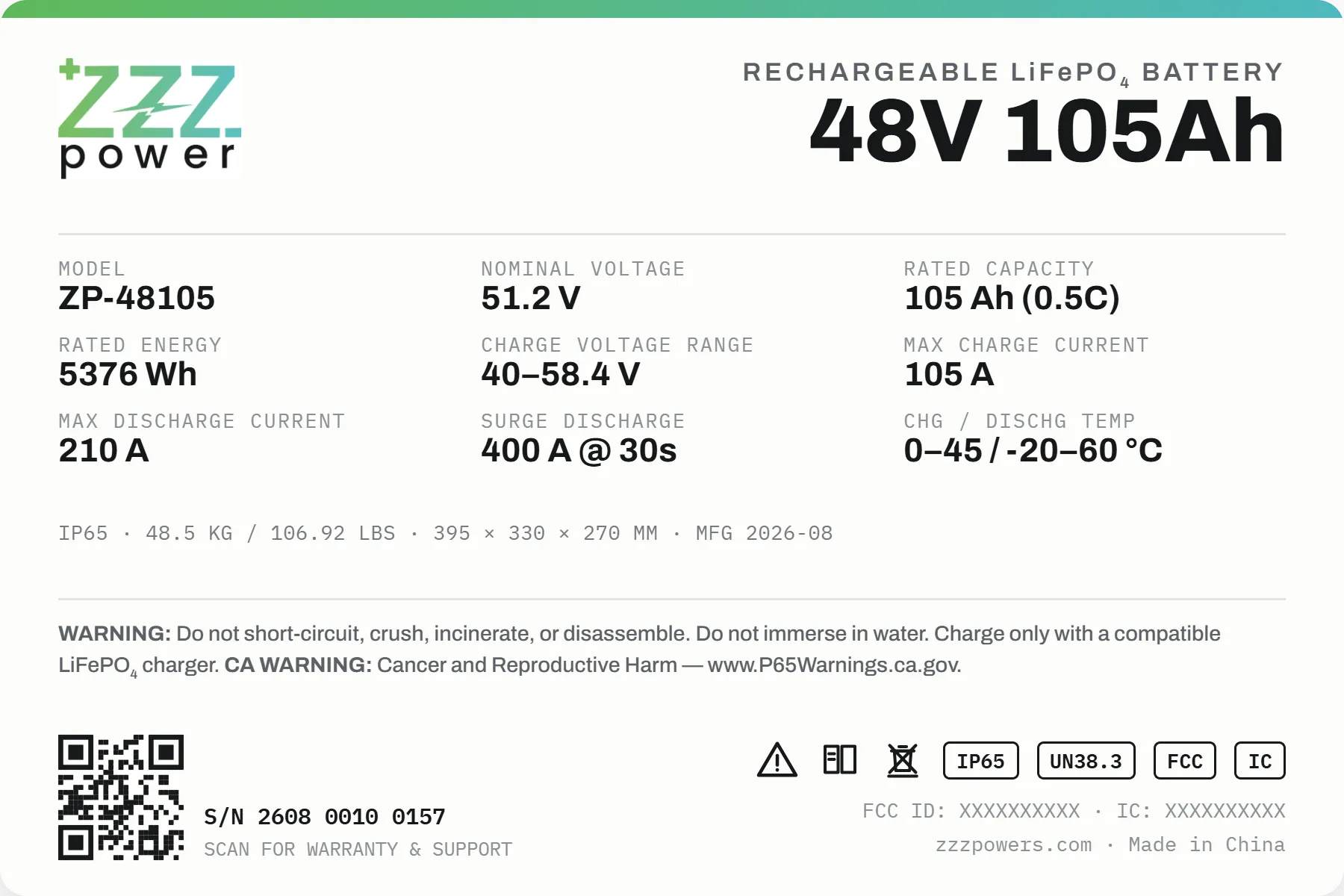

48V 105Ah
Model ZP-48105
- 3,500+ cycles
- 210A cont, 400A surge
- IP65-sealed, maintenance-free
Full specs — 48V 105AhZP-48105
LiFePO4 · IP65 · UN38.3 · FCC · IC
L × W × H (ref.)15.55 × 12.99 × 10.63 in (395 × 330 × 270 mm)
Nominal voltage51.2V
Capacity105Ah
Energy5376Wh (5.4kWh)
Max discharge210A
Surge400A for 30s
ChemistryLiFePO4
Cycle life3,500+ cycles
Ingress ratingIP65
Warranty3 years
Weight106.92 lbs (48.5 kg)
Compare long-term benefits
≈40%
lower cost over 10 years
One pack vs ~4 lead-acid replacements
+60%
more range per charge
Nearly all the energy is usable, not half
38%
fewer charging trips
Same miles, fewer plug-ins
Estimated vs a typical worn lead-acid pack. Cost assumes lead-acid replaced about every 2.5 years over a 10-year lithium life.
Let's match your cart
Let's Confirm Your Fit
We need a little more detail to recommend a pack. Send an inquiry below, or email photos of your battery compartment and label.
We confirm these details before you order
System voltageTray fitTerminal layoutChargerBrackets & harness
Have photos? Email your battery compartment and label →
